ROVI A3

The all new
ROVI A3

LEARN MORE

Why the ROVI A3?

Four years ago we brought to life the award-winning, ROVI X3, and for the first time in their history, Motion Concepts had their very own power base. The engineering teams at ROVI and Motion Concepts worked tirelessly together in the early development phases of the X3 and since its introduction we’ve been listening. As a matter of fact, they’ve gathered feedback from ATP’s and Clinician’s across the nation. From those input sessions, the engineers got to work on the ROVI A3 to create all new power positioning solutions that achieve clinical goals and answer consumer requests.

The all new ROVI A3 combines our patented Active Ride Control suspension system and powerful 4-pole motors into a brand new power base that takes Motion Concepts power positioning to all new levels. Standard high speed motors, LED lighting, and the largest, base-contained, 3 battery option available in the industry for individuals that utilize a ventilator, are just a few of the highlights of the new ROVI A3.

Our Features

407 Maxx System

Designed exclusively for the ROVI A3 base, the simplicity of
the 407’s Single Pivot Tilt design optimizes the geometry
of the base for maximum stability while providing an
Anterior Assist at no charge. When combined with a Recline
module the Trendelenburg positioning allows the feet to be
elevated above the head to lighten the load on the heart.

• Featuring up to 40° of Posterior Tilt with 7° of Anterior Assist
• Up to 170° of Recline
• Optional LNX Power Center Mount Foot Platform or Fixed
 Center Mount Legrest
• Available with the full range of Motion Concepts’ accessories and Invacare® Matrx® Seating products, mounted via our Ultra Rail and Ultra Track slotted interfaces
• Seat-to-Floor heights as low as 17"
• Up to 250 lb. weight capacity

Multi-Position Standing MAXX System

The new Multi-Position Standing System (MPSS) is an innovative, highly adjustable system combining power standing and a full range of power positioning options in a package that provides a unique combination of independence, function and accessibility.

• Up to 45° CG Tilt, 178° of Recline with Extended Shear Reduction (ESR) and 7" Seat Elevation
• 16" - 21" W x 16" - 20" D Standard Adult Sizes; Fully width and
 depth adjustable
• The angle, height/depth adjustable and removable Knee Block is designed to secure the user while standing
• Available with the wide range of Motion Concepts’ accessories and Invacare® Matrx® Seating products, mounted via our Ultra Rail and Ultra Track slotted interfaces
• Reduced drive speed in Standing position
• Anti-dive locking mechanism offers additional stability and safety by locking front suspension arms as the Standing function is engaged
• When system is not in Standing position the ROVI A3’s ARC
 suspension is fully functioning for maximum performance and
 climbing capability
• Seat-to-Floor heights as low as 18.5"
• Up to 250 lb weight capacity

Lateral Tilt Maxx Module

Our Lateral Tilt (side to side) module is designed to complement
traditional positioning solutions such as Tilt, Recline or Tilt/Recline. This feature is effective for stabilizing the trunk, pressure reduction, client transfers, and can help alleviate digestive pressure and respiratory issues. From this laterally tilted position, users still retain the ability to tilt posteriorly and/or recline.

• Enables a Tilt, Recline or Tilt/Recline system to tilt laterally up to 15° in either direction
• Offers up to 50° of Tilt and 170° of Recline while laterally tilted
• Can be driven at reduced speed in the Lateral Tilt position while posteriorly Tilted or Tilted/Reclined up to 30° at the same time
• Built-in sensor allows the system to automatically stop when the seat is horizontal to the base (0°)
• Available with the full range of Motion Concepts’ accessories and Invacare® Matrx® Seating products, mounted via our Ultra Rail and Ultra Track slotted interfaces
• Seat-to-Floor heights as low as 19.75"
• Up to 225 lb weight capacity

UpFront Maxx Module

Our newest Ultra Low Maxx module allows people to get a bit closer to their everyday task! By thoughtfully combining a fully functioning power positioning system with 5.5" of forward shift, consumers are able to explore new ways of accessing previously difficult to reach surfaces and objects. The UpFront module also provides confidence and stability by automatically tucking the user’s feet rearward, under the front of the seat pan and locking out the front casters for peace of mind and greater flexibility. All this access is available with the durability, function and modularity you have come to expect from our entire Ultra Low Maxx line.

• Fully modular, featuring up to 45° of CG Tilt,
 170° of Recline and up to 45° of Anterior Tilt
• 16" - 22" W x 16" - 23"D, fully adjustable
• Reduced drive speed in UpFront position
• Recline available from ALL positions
• When system is not in UpFront position the ROVI A3’s
 ARC suspension is fully functioning for
 maximum performance and climbing capability
• Anti-dive locking mechanism offers additional
 stability and safety by locking front suspension
 arms as the UpFront function is engaged
• Available with the wide range of Motion Concepts’
 accessories and Invacare® Matrx® Seating
 products, mounted via our Ultra Rail and Ultra
 Track slotted interfaces
• Seat-to-Floor heights as low as 17.5"
• Up to 250 lb weight capacity

Request

A3 Test Drive

Submit your request and we'll get back to you soon
to schedule a test drive.

Yes
No
Yes
No
Yes
No
Yes
No
Yes
No

The Newest Accessories for the A3

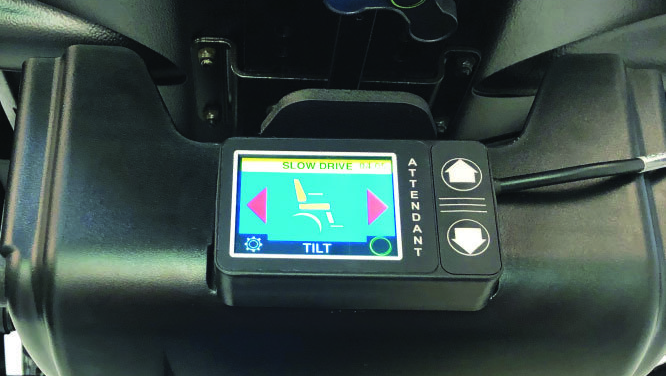

M290 Color, Touch Screen Attendant Control & Programmer - Coming Soon

  • Hand-held, compact attendant control of up to six power positioning functions in familiar Helix Box configuration
  • Easy to read, and intuitive LCD screen
  • Programming continuity – Tipsy, speed, limits, etc.

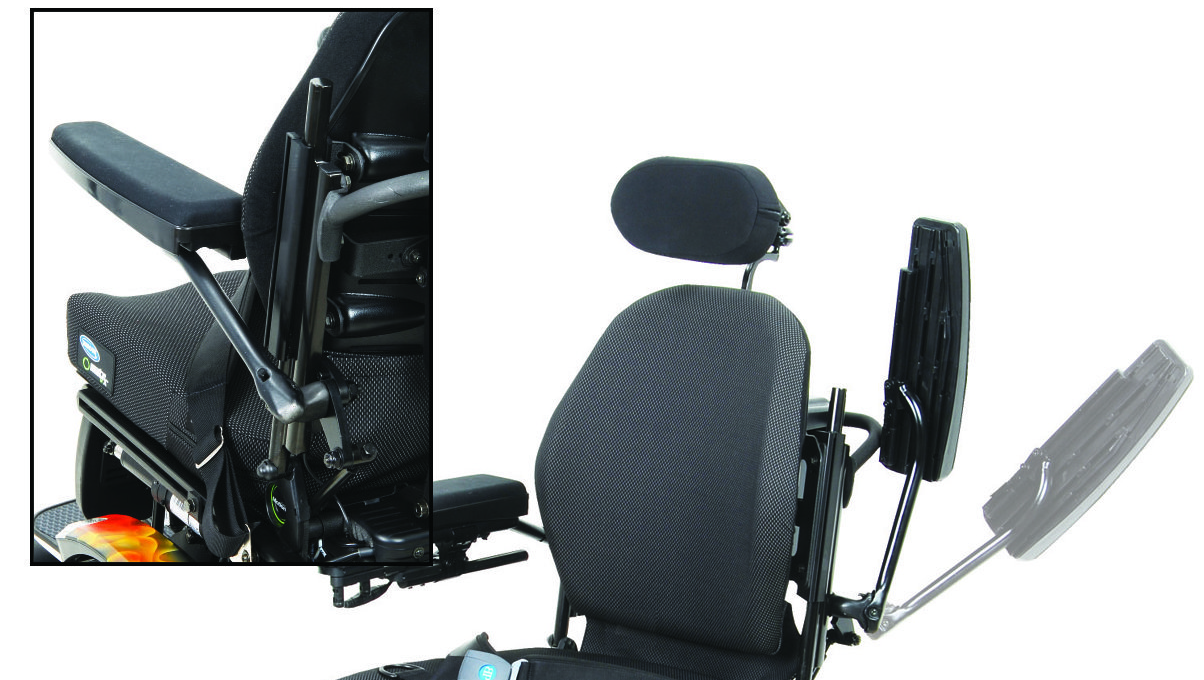

Outback Cantilever
Recline Armrest

  • First ever multi-adjustable Recline Arm with Outback feature
  • This arm is designed to provide infinite width adjustment over the established adjustment range. The Outback Armrest offers a 4" range of adjustment, allowing the armrest to be positioned 3" narrower or 1" wider (relative to the back cane)
  • Each Armrest’s angle can be independently adjusted +/- 15° to accommodate the varying needs • The Arm Pad on the Outback Armrest can be further adjusted for width via mounting slots and offer both 5" of depth and/or angle (rotation) if necessary
  • The unique “Outback” design allows the Outback Armrest to be moved ‘out’ and then ‘back’ to provide full clearance for conducting side-transfers.

Modular Independent Flip-Up Foot Plates - Coming Soon

  • The highly adjustable design of the foot plates allow it to grow 2" forward, 1" laterally and swivel 45° to the sides to capture most complex foot positions
  • Offers 19° dorsiflexion, 10° plantar flexion • For additional protection and comfort the foot plates come standard with steel lateral guard and adjustable velcro heel and foot straps as well as rubber, non-skid inner base
  • Flips up for easy transportation, transfer and storage
